EX-CMG

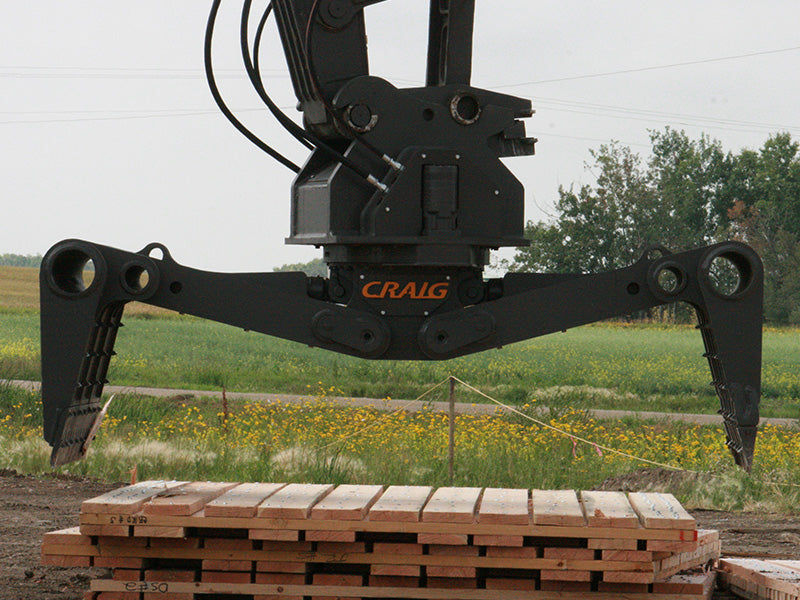

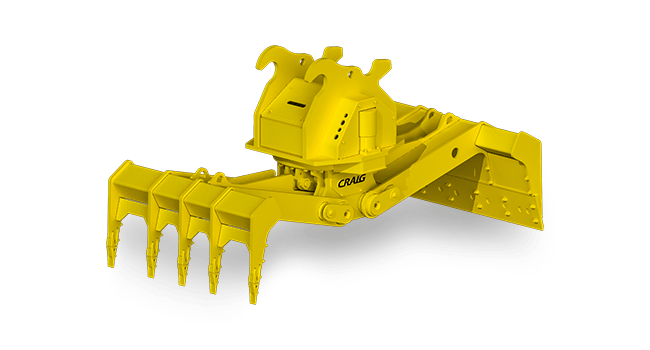

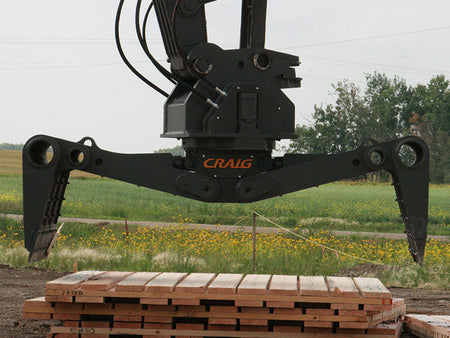

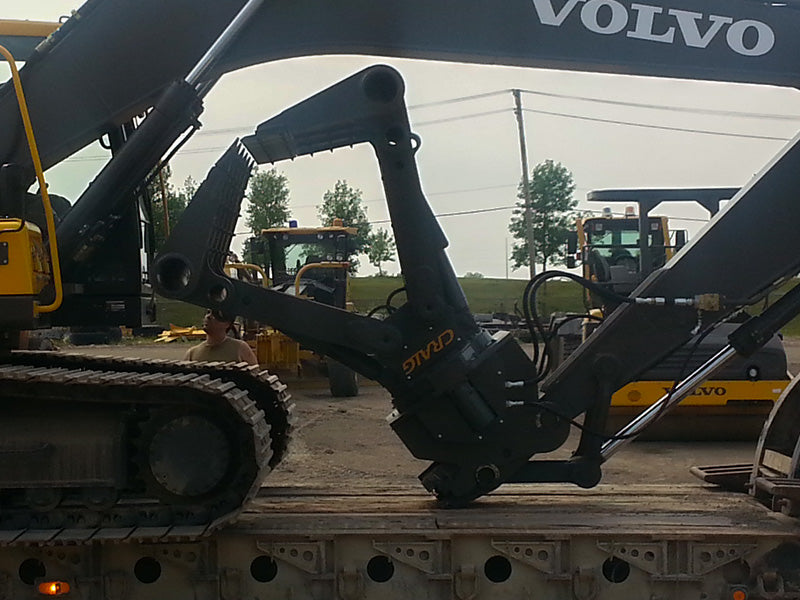

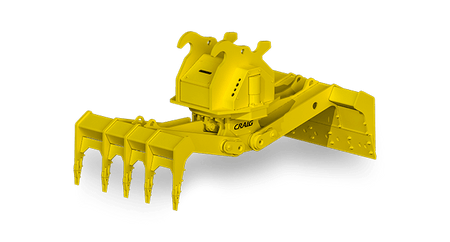

Excavator Rotating Mat Grapple

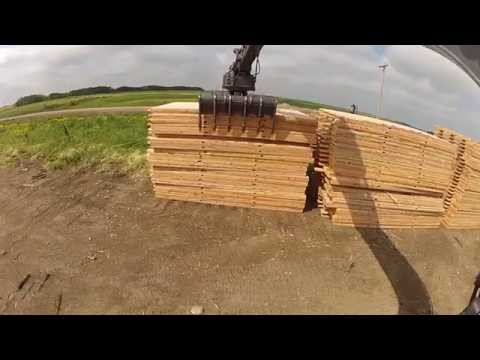

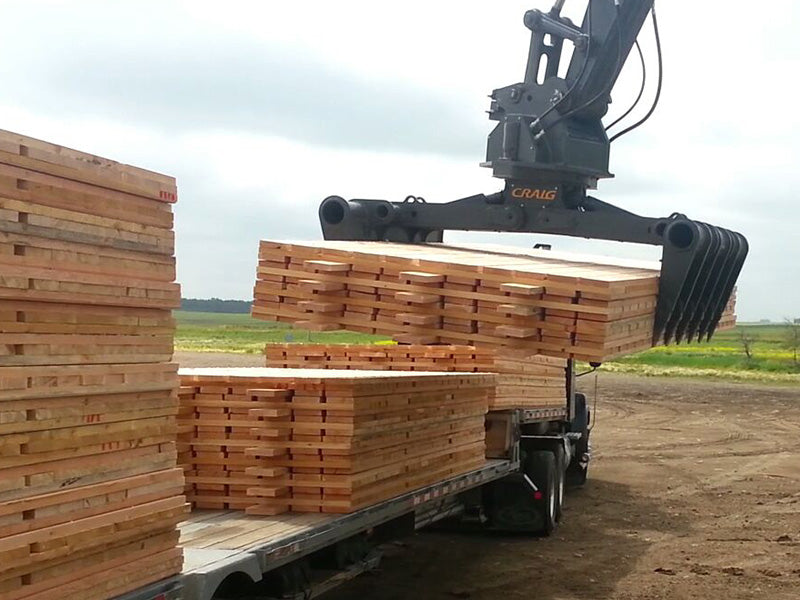

Perfect for loading, unloading, and cleaning rig mats. The Craig Rotating Mat Grapple is the ideal tool to increase productivity and enhance matting capabilities. Features dual high torque motors for continuous 360° rotation.

  • Two grapple sizes available capable for carrying 8’ wide mats
  • 120 – 150 class grapple capable of carrying two mats (~5,000 lbs*)
  • 200 – 300 class grapple capable of carrying four mats (~10,000 lbs*)
  • Extra wide opening
  • Low profile design for added stability
  • Available in 2 clamp configurations – paddle and rake or two paddles
  • Optional valve in head control kit available – requires only one set of auxiliary lines
  • Dual bushings at all pivot points with grease fittings
  • Torque tube design and AR 100 plate construction in rake and paddle
  • * Max capacity subject to machine capability
