WL-CBF

Car Body Forks

DOCUMENTATION

WL-CBF

Car Body Forks

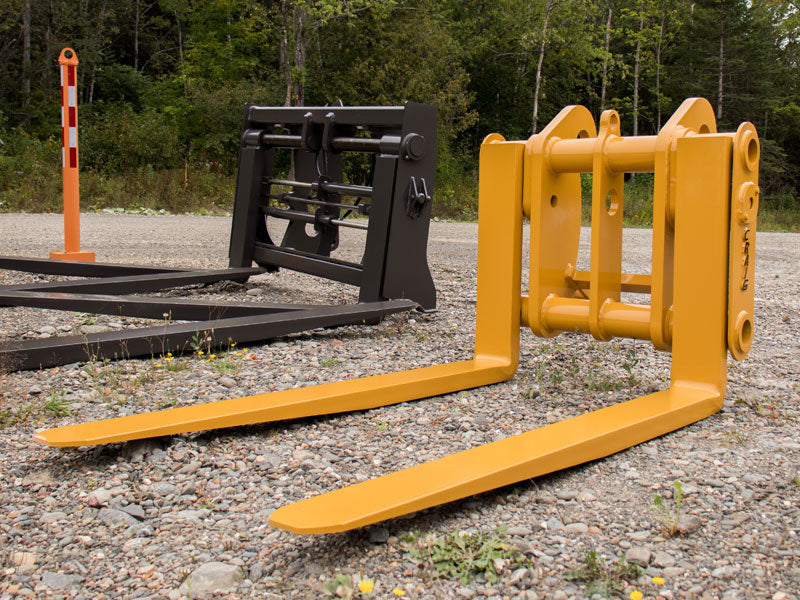

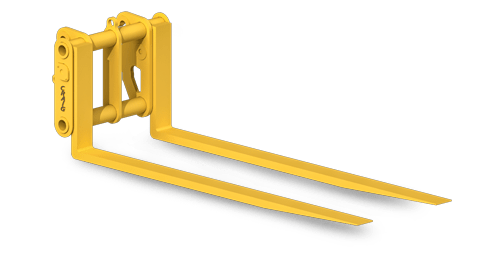

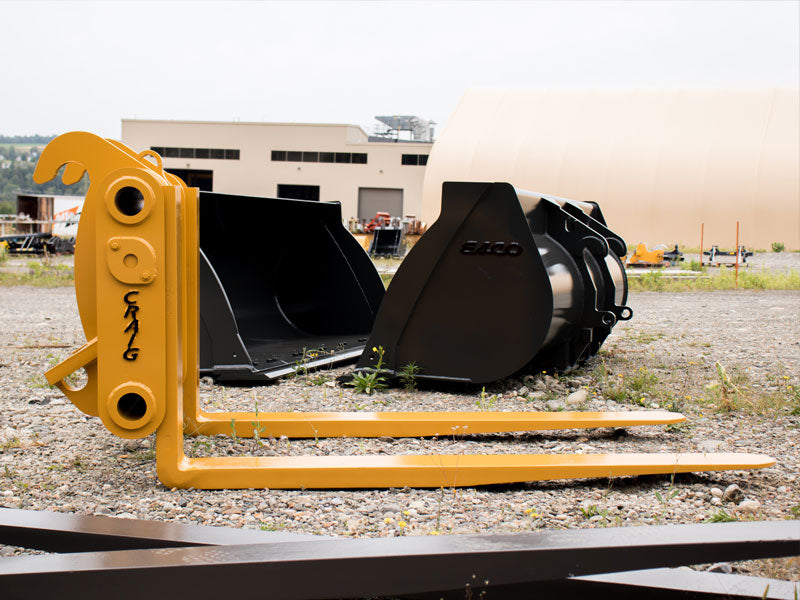

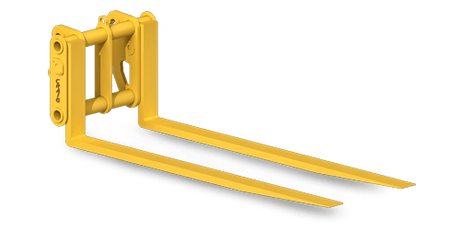

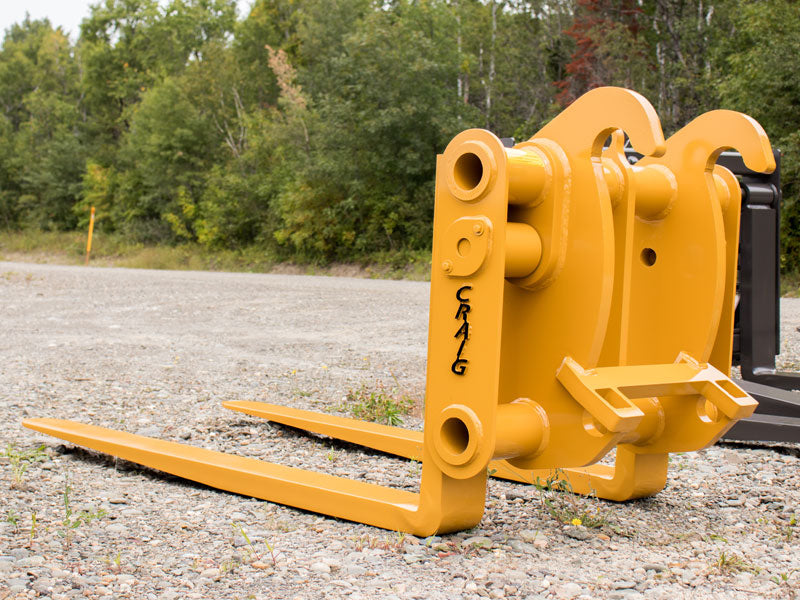

Specially designed for salvage and recycling yard applications, this extra long fork is ideal for moving and sorting cars and light trucks. Custom sizes available upon request, call for details.

  • Available in various fork lengths and thicknesses
  • Optional back-drag leveling edge available upon request
  • Tines are made from superior quenched and tempered steel
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations

2.00 – 2.50 yd

  • 2-1/2″ x 8″ x 72″ (19,000 lbs)
  • 2-1/2″ x 8″ x 84″ (16,200 lbs)
  • 2-1/2″ x 8″ x 96″ (14,200 lbs)
  • 2-1/2″ x 8″ x 120″ (11,300 lbs)
  • 2-1/2″ x 8″ x 144″ (9,400 lbs)

2.75 – 3.00 yd

  • 3″ x 8″ x 72″ (25,200 lbs)
  • 3″ x 8″ x 84″ (21,700 lbs)
  • 3″ x 8″ x 96″ (19,000 lbs)
  • 3″ x 8″ x 120″ (15,200 lbs)
  • 3″ x 8″ x 144″ (12,600 lbs)

3.00 – 3.50 yd

  • 3″ x 8″ x 72″ (25,200 lbs)
  • 3″ x 8″ x 84″ (21,700 lbs)
  • 3″ x 8″ x 96″ (19,000 lbs)
  • 3″ x 8″ x 120″ (15,200 lbs)
  • 3″ x 8″ x 144″ (12,600 lbs)

4.00 – 4.75 yd

  • 3-1/2″ x 8″ x 72″ (36,400 lbs)
  • 3-1/2″ x 8″ x 84″ (31,000 lbs)
  • 3-1/2″ x 8″ x 96″ (27,200 lbs)
  • 3-1/2″ x 8″ x 120″ (21,700 lbs)
  • 3-1/2″ x 8″ x 144″ (18,100 lbs)

5.00 – 5.50 yd

  • 4″ x 8″ x 72″ (45,000 lbs)
  • 4″ x 8″ x 84″ (38,600 lbs)
  • 4″ x 8″ x 96″ (33,800 lbs)
  • 4″ x 8″ x 120″ (27,000 lbs)
  • 4″ x 8″ x 144″ (22,500 lbs)
