WL-CLLF

Log and Lumber Forks

DOCUMENTATION

WL-CLLF

Log and Lumber Forks

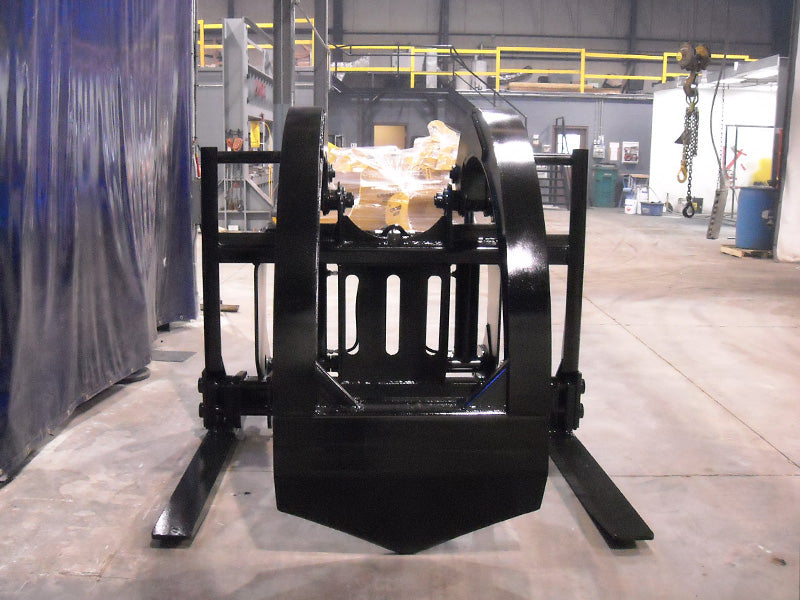

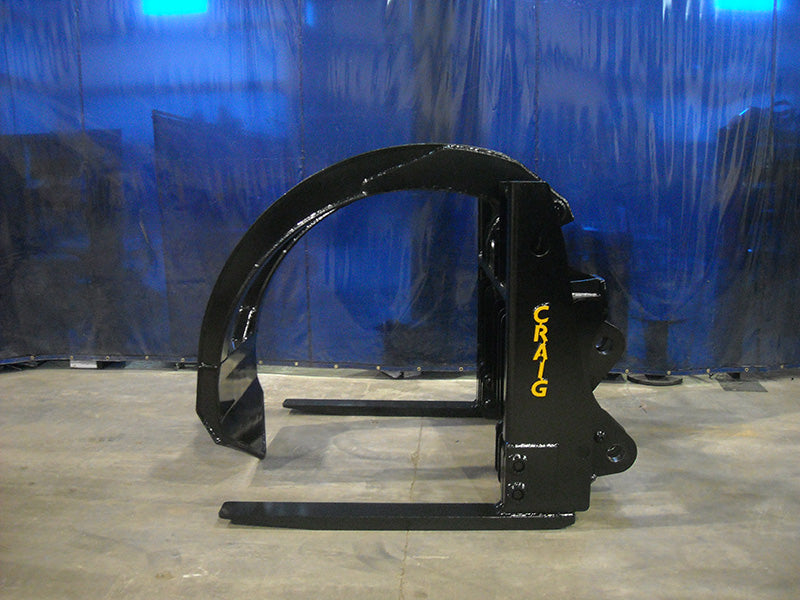

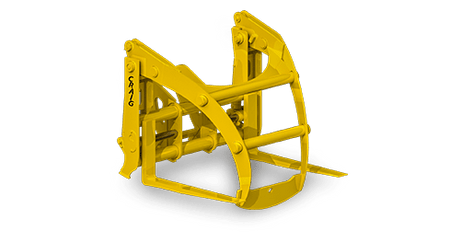

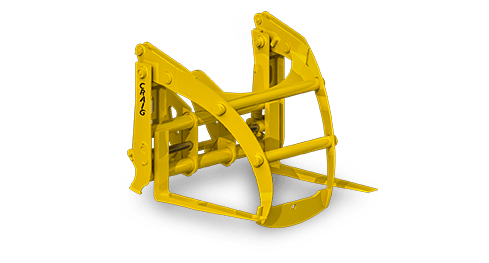

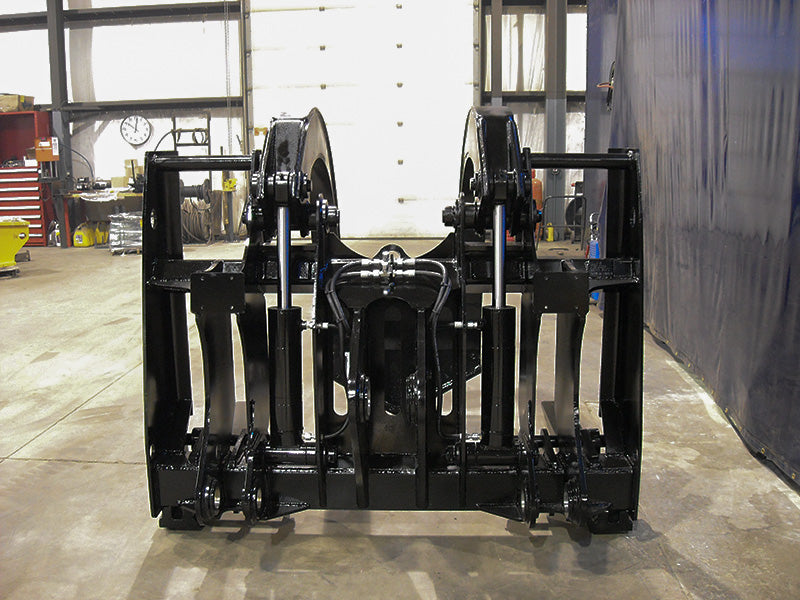

The Craig Log and Lumber Fork is a do-it-all job site tool for the mill operator who has a variety of requirements for their loader. Excellent for handling tree length or bolt length logs, the Craig Log and Lumber Fork also features ā€˜Lā€™ shaped tines for handling stickered lumber and loaded lifts. The fork frame features a cylinder-tower design which keeps the top of the back frame low, while the top clamp is made from superior AR 100 steel for an open design. Ensuring maximum visibility keeps the operation efficient and safe.

  • Available in various fork lengths and thicknesses
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Optional third valve required on machine
  • Optional floating tine assembly that can be locked rigid when not in use

2.00 – 2.50 yd

  • 2-1/4″ x 5″ x 48″ (15,200 lbs)

2.75 – 3.00 yd

  • 2-1/2″ x 6″ x 48″ (21,400 lbs)

3.00 – 3.50 yd

  • 2-1/2″ x 6″ x 54″ (19,000 lbs)

4.00 – 4.75 yd

  • 2-3/4″ x 6″ x 54″ (22,000 lbs)

5.00 – 5.50 yd

  • 3″ x 7″ x 60″ (27,300 lbs)

4.00 – 4.75 yd

  • 3-1/2″ x 8″ x 60″ (43,600 lbs)
