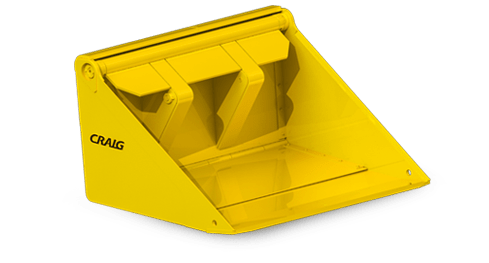

ST-SCB
Ejector Bucket

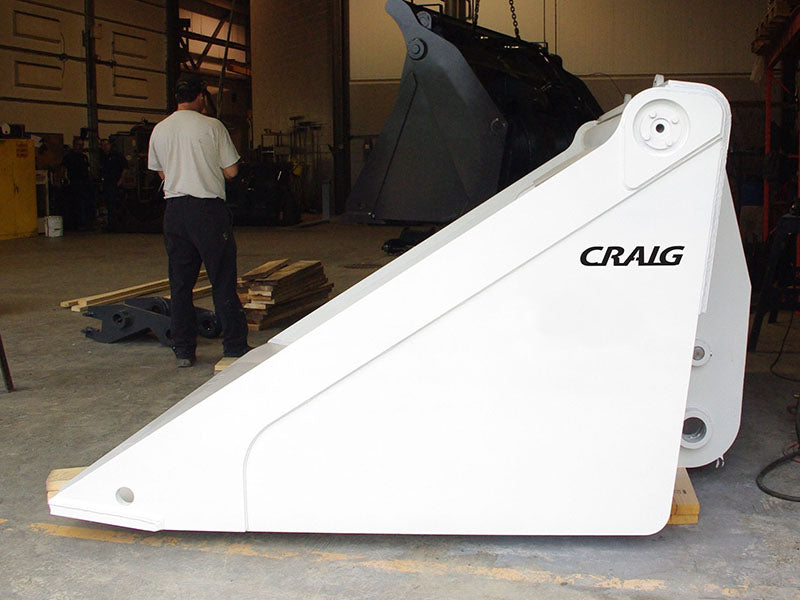

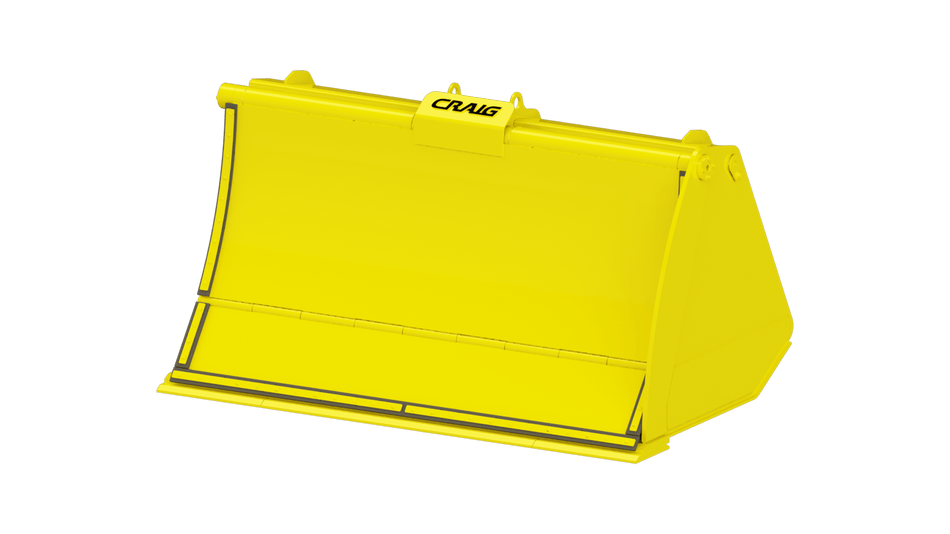

Scooptram Ejector Bucket

  • Scooptram Ejector Bucket
  • Scooptram Ejector Bucket
  • Scooptram Ejector Bucket

DOCUMENTATION

The Craig Scooptram Ejector bucket is designed to allow for easy loading and unloading of material in underground mining applications where being able to work in confined spaces is crucial. The bucket ejects material by hydraulically pushing the floor of the bucket outwards, eliminating the need to raise the bucket up to dump it.

  • High visibility, corrosion resistant paint and primer available
  • Ejector style floor pushes out via two hydraulic cylinders

T4900WP / T0600WP
Folding Wing Plow

The Craig Folding Wing Plow is designed to be the ultimate multi-function snow fighting tool. The adjustable end gates allow it to be used as a reversible plow, box plow, and back dragging plow. Available for backhoes and medium sized wheel loaders with a bucket capacity ranging from 2.00yd to 3.50yd. Machine will require an auxiliary valve to operate the plow. Electric over hydraulic diverter valve and in-cab controls included.

  • Trip edge only
  • Replaceable, reversible cutting edges
  • Available in Craig Quik Key, OEM coupler, and pin-on configurations
  • Available in 10 and 12 foot widths
  • Patented hydraulic tire protection system
  • 3 and 6 foot end gates available
  • Optional trip edge end gates available

WL-0600

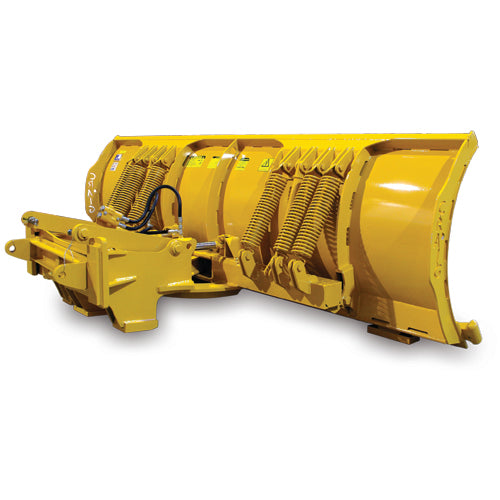

Hydraulic Reversible Plow

The result of over 70 years of design improvements, this reversible is the industry leader in snow equipment for wheel loaders today. The full floating frame follows the contour of the road both laterally and horizontally to ensure maximum contact.

  • Full down pressure capability standard
  • Trip moldboard standard, trip edge available
  • Replaceable wear shoes and cutting edge for long wear life
  • Available in Craig Quik key, OEM couplers and Pin-on configurations
  • Optional third valve required on machine

WL-1072
1072 One Way Plow

The Craig 1072 Series plows are the next generation of rugged one way Craig blades built for today’s high speed machines. This plow is the modern version of the long heralded 670 Series and remains true to that plow’s history of trouble-free operation and structural integrity. Equipped with a solid push frame and triangular trip mechanism this plow is ideal for heavy public works use. With factory equipped manual moldboard pitch and wear shoe adjustment it’s easy to get the perfect operating setup for your application.

The 1072 Series of plows meet all tender specifications previously reserved for the Craig 670 series.

  • 11° moldboard ‘angle of attack’ adjustment
  • 37° moldboard angle to road (by direction of travel)
  • 2 bolt manual shoe adjustment
  • High wear hardened steel plate wear shoes
  • Heavy duty triangular trip mechanism

WL-301

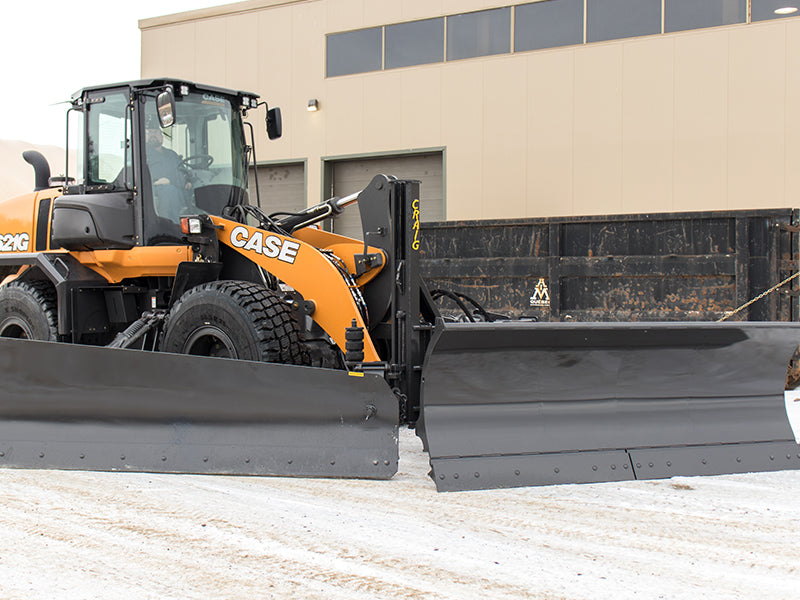

301 Series Wing

In the mid 50′s Craig Manufacturing was the first company to put a wing assembly on a wheel loader. Ever since this historic event we’ve continued to innovate and refine our industry leading design. The perfect curvature of our wing moldboard is still based on the magic formula for snow curl and discharge we’ve used since day one.

  • 48" level benching height
  • Push pole extends 22" for increased reach
  • Superior operator visibility
  • Plow harness accepts all Craig snow plow models
  • Replaceable, reversible cutting edge for long wear life

WL-683

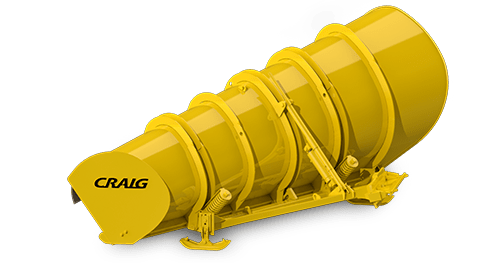

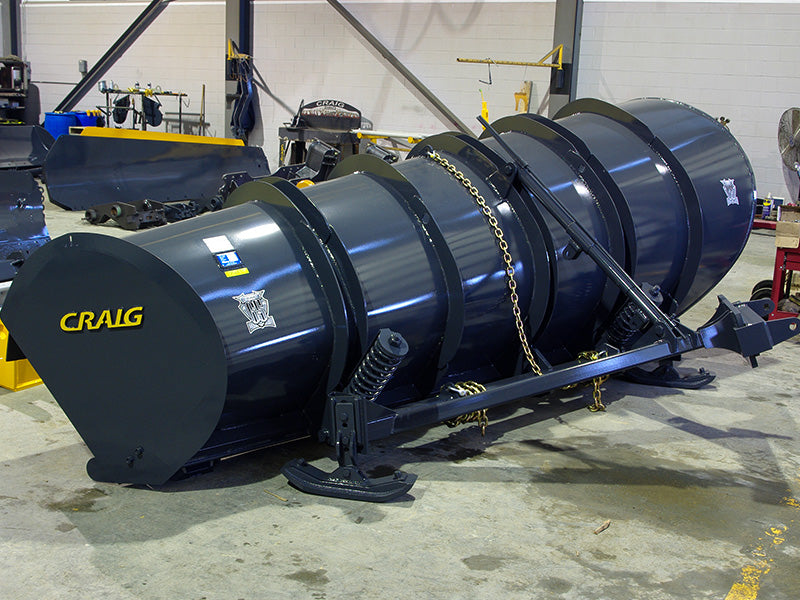

High Speed One Way Plow

Featuring a very aggressive conical moldboard, this plow has been designed specifically for highway use. The large difference between intake and discharge heights results in superior snow curl and discharge at high speeds.

  • Features a unique trip that jumps up and back to clear obstacles
  • Rubber snow deflector standard
  • Replaceable, adjustable wear shoes and cutting edge for long wear life
  • Optional hydraulic adjustable pitch available
  • Available in Craig Quik Key, OEM coupler, Push Pole and Pin-on configurations

WL-BFH

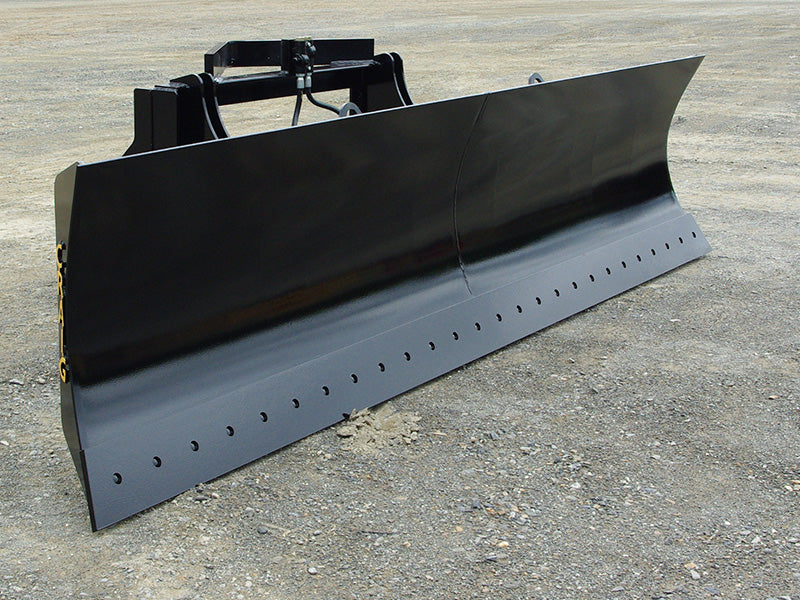

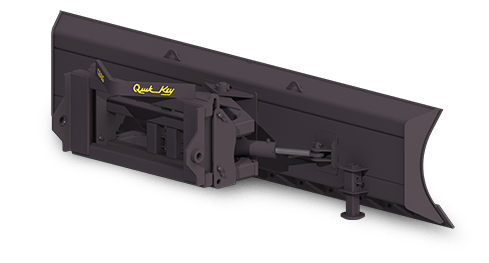

Hydraulic Reversible Backfill Blade

Wheel Loader Hydraulic Reversible Backfill Blade

  • Wheel Loader Hydraulic Reversible Backfill Blade
  • Wheel Loader Hydraulic Reversible Backfill Blade
  • Wheel Loader Hydraulic Reversible Backfill Blade

DOCUMENTATION

This dozer blade’s wide cylinder stance provides maximum hold and strength while dozing. The cutting edge is gusseted between each mounting hole and a smooth boxed back frame keeps the moldboard light and strong.

  • Skid shoes available to save wear on cutting edge
  • Drilled to accept dealer specified ground engaging tools
  • Cushion relief valve standard
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Optional third valve required on machine

WL-CBF

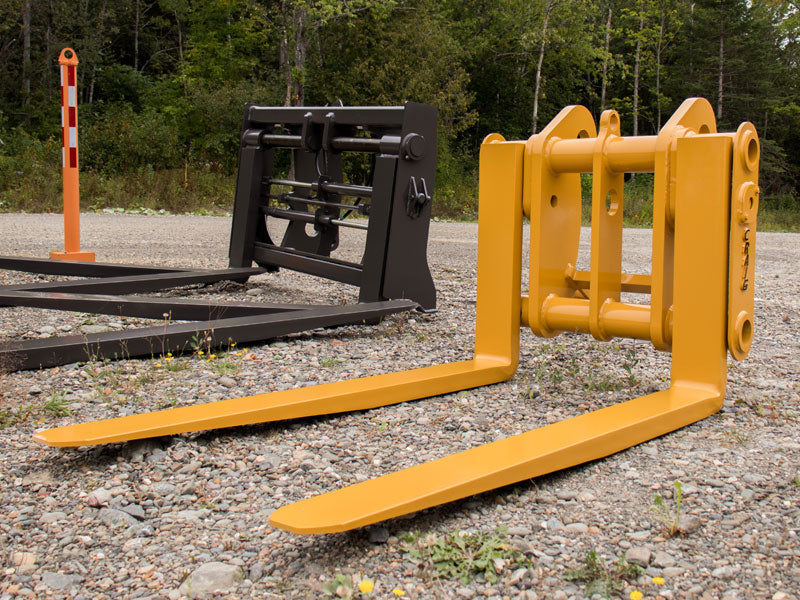

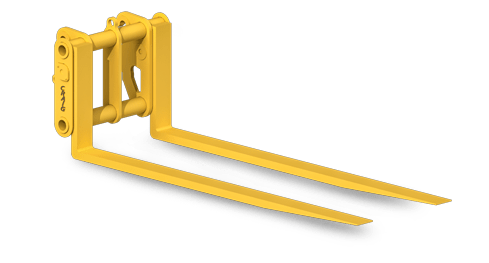

Car Body Forks

Wheel Loader Car Body Forks

  • Wheel Loader Car Body Forks
  • Wheel Loader Car Body Forks
  • Wheel Loader Car Body Forks

DOCUMENTATION

Specially designed for salvage and recycling yard applications, this extra long fork is ideal for moving and sorting cars and light trucks. Custom sizes available upon request, call for details.

  • Available in various fork lengths and thicknesses
  • Optional back-drag leveling edge available upon request
  • Tines are made from superior quenched and tempered steel
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations

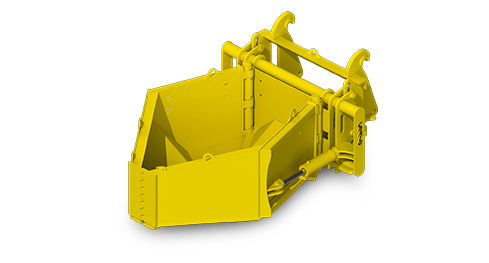

WL-CBX

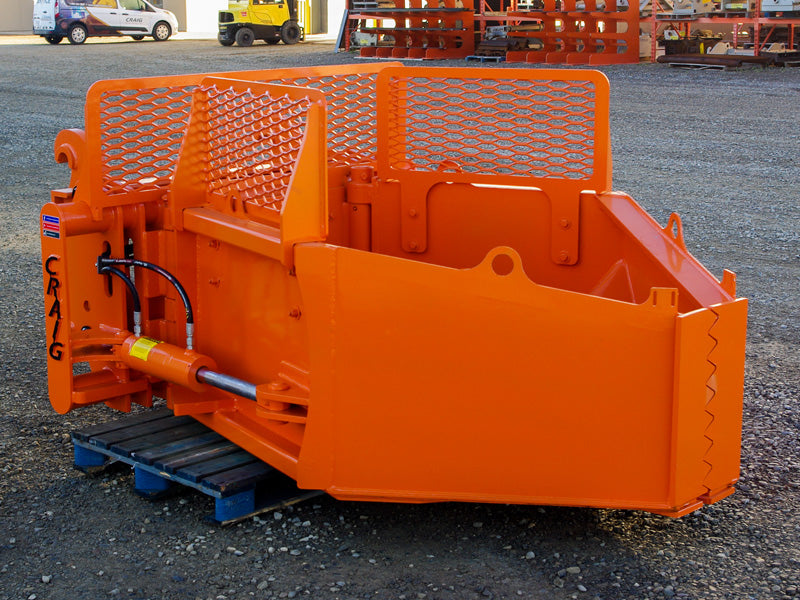

Craig Boxer Bucket

Designed for clearing leaves, brush, and other light materials, the Craig Boxer Bucket opens to collect a wide path of material and then closes for easy gathering of the material. The material can then be easily dumped into a truck, bin, or hopper by opening the Boxer Bucket over the truck or storage location.

  • Bolt-on reversible cutting edge ensures long life
  • Modular floating hook-up design
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Synchronized operation
  • Serrated closure for improved grabbing capability
  • Optional brush guard available
  • Optional visibility kit available

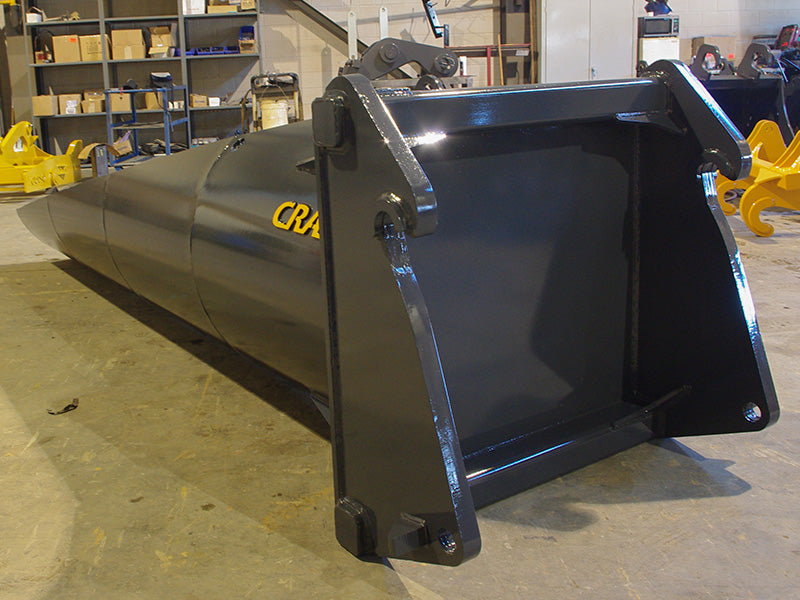

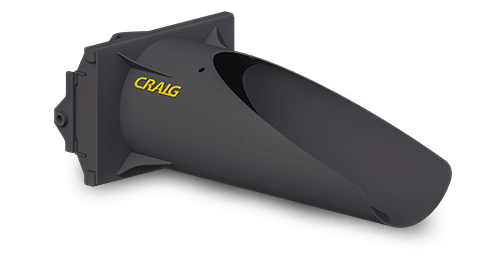

WL-CGS
Craig Gravel Scoop

Wheel Loader Gravel Scoop

  • Wheel Loader Gravel Scoop
  • Wheel Loader Gravel Scoop
  • Wheel Loader Gravel Scoop

DOCUMENTATION

Perfect for working in hard to reach areas, the Craig Gravel Scoop allows the operator to place loose material with precision – meaning less material lost.

  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Available in various widths and lengths

WL-CLLF
Log and Lumber Forks

Wheel Loader Log and Lumber Forks

  • Wheel Loader Log and Lumber Forks
  • Wheel Loader Log and Lumber Forks
  • Wheel Loader Log and Lumber Forks

DOCUMENTATION

The Craig Log and Lumber Fork is a do-it-all job site tool for the mill operator who has a variety of requirements for their loader. Excellent for handling tree length or bolt length logs, the Craig Log and Lumber Fork also features ‘L’ shaped tines for handling stickered lumber and loaded lifts. The fork frame features a cylinder-tower design which keeps the top of the back frame low, while the top clamp is made from superior AR 100 steel for an open design. Ensuring maximum visibility keeps the operation efficient and safe.

  • Available in various fork lengths and thicknesses
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Optional third valve required on machine
  • Optional floating tine assembly that can be locked rigid when not in use

WL-CLR
Land Clearing Rake

The Craig Land Clearing Rake transforms your loader into a versatile land clearing tool. Perfect for working with logging slash for biomass fuel collection and site preparation for re-planting. The boxed frame design provides maximum strength and high visibility while long and curved rake teeth offer superior load capacity.

  • Optional replaceable teeth available on request
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Available without hydraulic clamps

WL-CLR2-2W

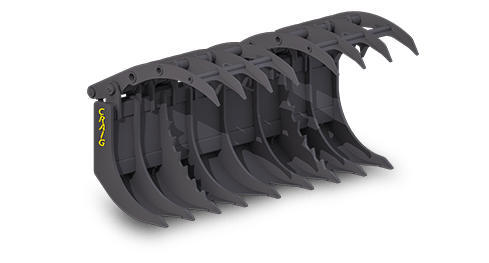

Pallet Crusher

Recycling pallets is made easy with the Craig Pallet Crusher. Based on the design of the Craig Land Clearing Rake, the Pallet Crusher allows you to easily pick up, crush and recycle old pallets.

  • Optional replaceable teeth available on request
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Two clamps powered by two cylinders each for maximum crushing power

WL-CMD-1000
1000 Commander Plow

The 1000 Commander Plow is ideal for medium sized wheel loaders – up to a 2.25yd to 3.5yd bucket capacity. A modular hook-up design allows for interchangeable hook-ups between the 750 and 1000 series of plows – giving you superior versatility. Comes with 2 piece trip edge.

  • 32 degrees of rotation both right and left
  • Modular hookup design allows hookups from either plow to interchange easily giving you ultimate versatility
  • Easily replaceable vertical trip springs on a rugged trip-edge plow
  • Solid 2.5" cylinders
  • Two piece reversible cutting edge
  • High gloss Craig Blue paint

WL-CMD-750
750 Commander Plow

The 750 Commander Plow is ideal for backhoes and small wheel loaders up to a 2yd bucket capacity. A modular hook-up design allows for interchangeable hook-ups between the 750 and 1000 series of plows – giving you superior versatility. Comes with 2 piece trip edge.

  • 32 degrees of rotation both right and left
  • Modular hookup design allows hookups from either plow to interchange easily giving you ultimate versatility
  • Easily replaceable vertical trip springs on a rugged trip-edge plow
  • Solid 2.5" cylinders
  • Two piece reversible cutting edge
  • High gloss Craig Blue paint

WL-CMG
Loader Mat Grapple

Wheel Loader Mat Grapple

  • Wheel Loader Mat Grapple
  • Wheel Loader Mat Grapple
  • Wheel Loader Mat Grapple

DOCUMENTATION

Designed for work in the oil fields, the Craig Mat Grapple for wheel loaders is the perfect tool for moving drilling mats around the job site.

  • Simple chain tine adjustment
  • Hoses concealed in frame
  • Central hose bank
  • Greaseable pins and lugs
  • 5" bore cylinders with 2.5" shaft
  • Tooth textured clamp provides a safe, secure grip

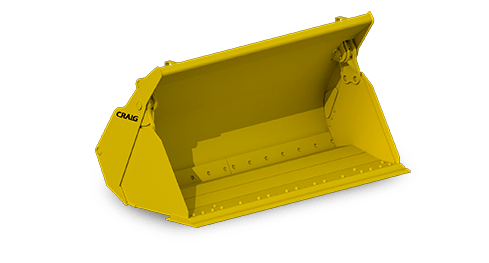

WL-CMP

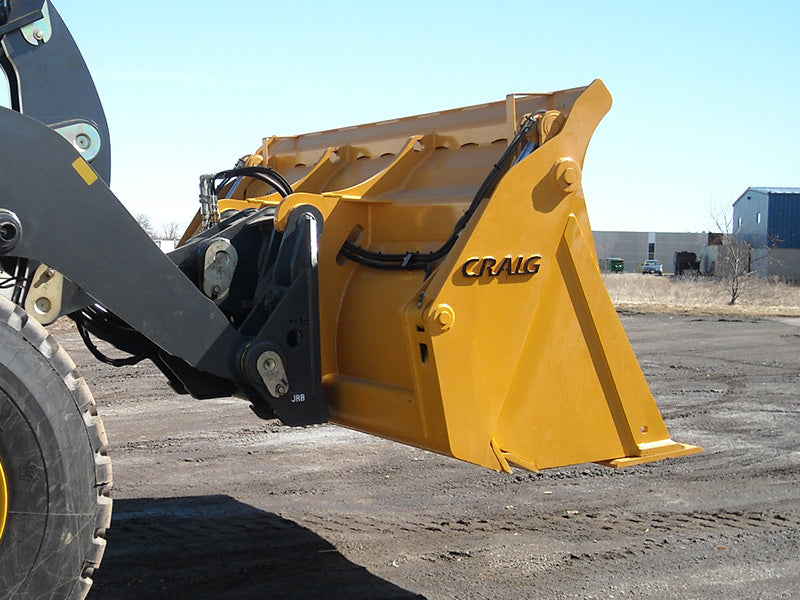

Multi-Purpose Bucket

Multiply the productivity of your wheel loader with a Craig Multi-Purpose Bucket. Use it as a conventional bucket, a dozer blade, a clam grapple, a belly dump, a backfill scraper, or add pallet forks for material handling. Dual cylinders and heavy duty boxed frame construction ensure that it’s up for any task.

  • Dual cylinder design
  • Bolt-on reversible cutting edge ensures long life
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Drilled to accept dealer specified edge, installed
  • Optional third valve required on machine

WL-CPF

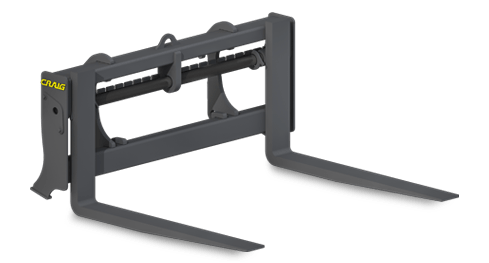

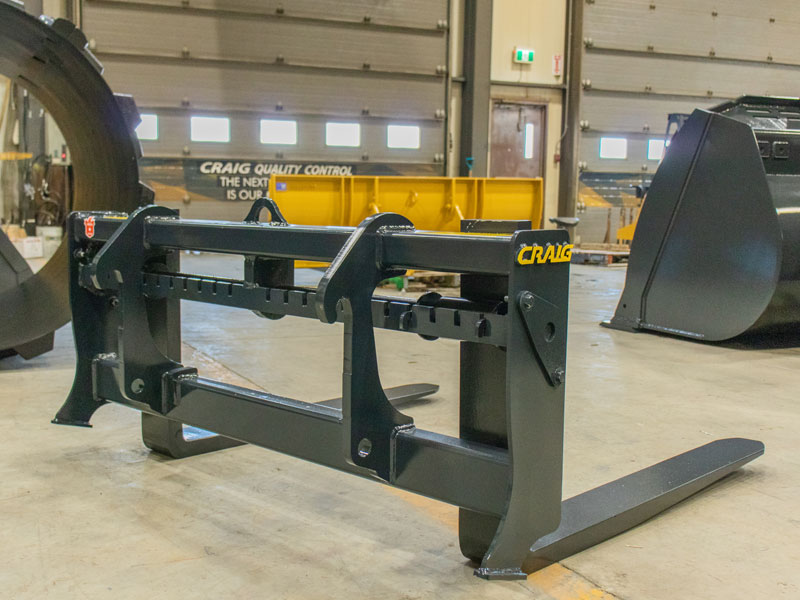

Pallet Forks

This is the standard hanging tine pallet fork design for wheel loaders. Fork spacing is infinitely variable along the hanger bar for maximum flexibility.

  • Available in various fork lengths and thicknesses
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • To prevent tines from swinging out, tine keepers are standard

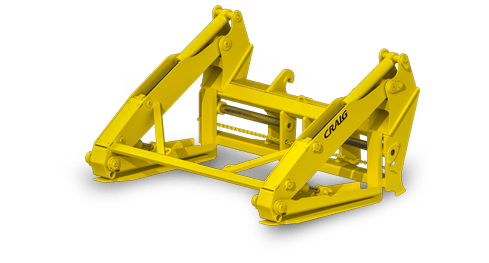

WL-CPG2

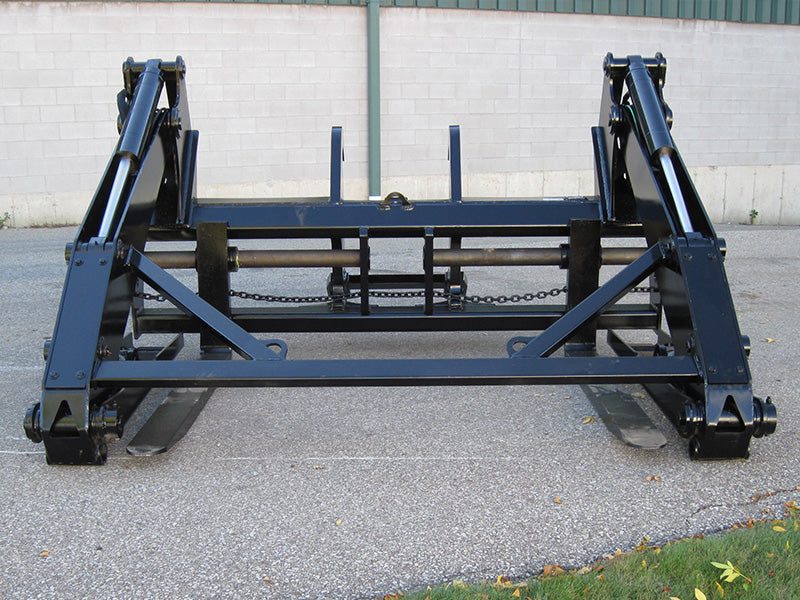

Loader Pipe Grapple

Wheel Loader Pipe Grapple

  • Wheel Loader Pipe Grapple
  • Wheel Loader Pipe Grapple
  • Wheel Loader Pipe Grapple

DOCUMENTATION

The Craig Pipe Grapple for wheel loaders is designed to work with all standard oil field pipe and features a low profile design that is the ultimate in high visibility.

  • Low back frame
  • Simple chain tine adjustment
  • Hoses concealed in frame
  • Central hose bank
  • Greaseable pins and lugs
  • 4" bore cylinders with 2" shaft
  • 54" and 60" standard tine sizes

WL-CSP
Snow Pusher

Clear large paved surfaces up to three times faster with one of our rugged Snow Pushers. Constructed specifically for parking lot and airport runway usage, our design incorporates a precision back frame for maximum strength and ease of hook up.

  • Available in either slip-on, Craig Quik Key, OEM coupler and Pin-on configurations
  • Various optional edge configurations available – carbide, rubber, etc.
  • Optional trip edge available
  • Can be ordered in a wide range of widths upon request
  • An industry leader. Designed and developed in Canada for heavy snow conditions

WL-CVMC
Combo Coupler

Offering superior visibility and minimal extension on the loader arms, the Craig Combo Coupler allows you to use your existing fleet of OEM specific hook-up attachments with no modifications on any brand of carrier.

  • Floating double acting cylinder
  • Minimal extension on the loader arms
  • Lock pins allow up to 10° of movement to improve alignment and connection strength as coupler parts wear
  • Pin assembly is available with grease fittings
  • Available Combo Coupler configurations include:
    • Balderson Style
    • Deere Worksite Pro
    • Deere High Visibility
    • FFC Style
    • IT Style
    • JCB (Q-FIT)
    • JRB Hook Style
    • Volvo Hook Style

WL-FMDPF
Integrated Plow Harness

Wheel Loader Integrated Plow Harness

  • Wheel Loader Integrated Plow Harness
  • Wheel Loader Integrated Plow Harness
  • Wheel Loader Integrated Plow Harness

DOCUMENTATION

In the mid 50’s Craig Manufacturing pioneered the first snow wing on a wheel loader. Ever since this time Craig has continued to make product improvements. The 2011 season saw the rebirth of the plow harness itself. Craig has endeavored to build a better performing plow harness, which incorporates many of the standard features as well as some new ones.

  • Significant weight reduction by 550 lbs thus reducing the wear on the loader
  • Less extension to the overall package
  • Improved visibility making intersections a little less hazardous

WL-GCB
Garbage Clamp Bucket

Two rugged perforated plate clamps allow for large capacities of odd shaped and difficult materials to be handled efficiently and accurately for loading and sorting.

  • Two piece enclosed top clamps standard
  • Available with custom clamps for your specific application (pricing will vary)
  • Bolt-on reversible cutting edge ensures long life
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Drilled to accept dealer specified ground engaging tools
  • Optional third valve required on machine

WL-GP
General Purpose Bucket

The Craig General Purpose Bucket is the result of over 70 years of field tested, proven design and manufacturing capability.

  • Drilled to accept dealer specified ground engaging tools
  • Bucket capacities calculated using SAE standards
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Designed to load and dump efficiently

WL-GP-M
Mulch Bucket

This standard 56″ bucket (available up to 72″) provides an accurate struck capacity of 1 cubic yard or 1.19 cubic yards heaped. Its deep narrow design allows for accurate loading of quarter ton or half ton pickups in the commercial sale of mulch.

  • Engineered for accurate measurement and ease of use
  • Bolt-on reversible cutting edge ensures long life
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Drilled to accept dealer specified edge, installed

WL-GPP
Performance Bucket

Use your machine to its full potential with the Craig Performance Bucket. Featuring curved side cutters, the Craig Performance Bucket allows for a greater heaped capacity over the traditional General Purpose bucket – giving you an advantage when it comes to loading trucks.

  • Drilled to accept dealer specified ground engaging tools
  • Bucket capacities calculated using SAE standards
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Designed to load and dump efficiently
  • Curved side cutters allow for a larger heaped capacity

WL-HAF
Hydraulic Adjustable Pallet Forks

Wheel Loader Hydraulic Adjustable Pallet Forks

  • Wheel Loader Hydraulic Adjustable Pallet Forks
  • Wheel Loader Hydraulic Adjustable Pallet Forks
  • Wheel Loader Hydraulic Adjustable Pallet Forks

DOCUMENTATION

Change tine spacing on-the-fly from inside the cab with the Craig Hydraulic Adjustable Pallet Forks. This hanging tine design features two synchronous cylinders to ensure smooth operation.

  • Available in various fork lengths and thicknesses
  • Optional floating tines available upon request
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Optional third valve required on machine

WL-HT
High Tip Bucket

Increase the dump height of your wheel loader with a Craig High Tip Bucket. On most machines you can increase your dump height to the OEM boom pin height allowing for applications such as loading high-side trucks without the need of a ramp.

  • Dual cylinder design with cushion valve for smooth operation
  • Visibility slots for accurate loading
  • Flat bottom design allows easy penetration and loading
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Drilled to accept dealer specified edge, installed
  • Optional third valve required on machine

WL-HTS
Hydraulic Trip Swivel

Wheel Loader Hydraulic Trip Swivel

  • Wheel Loader Hydraulic Trip Swivel
  • Wheel Loader Hydraulic Trip Swivel
  • Wheel Loader Hydraulic Trip Swivel

DOCUMENTATION

Protect your wing assembly with this cab resettable hydraulic trip swivel. Replacing the standard bell swivel on the front post, this unit uses hydraulics to allow the moldboard to trip when it strikes an obstacle.

  • Proven road tested, light weight design
  • Rugged double acting cylinder
  • Requires additional valve on machine

WL-LM
Light Material Bucket

Maximize each load, save time and money. Whether you’re loading wood chips, saw dust, peat moss, hog fuel, snow or any other light material you want to load to your machine’s capacity. Our engineers can design to meet any application.

  • Visibility slots available upon request
  • Bolt-on reversible cutting edge ensures long life
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Drilled to accept dealer specified edge, installed
  • Designed to load effectively and easily
  • Can be customized to meet your specific requirements

WL-LMFS
Feedlot Bucket

Wheel Loader Feedlot Bucket

  • Wheel Loader Feedlot Bucket
  • Wheel Loader Feedlot Bucket
  • Wheel Loader Feedlot Bucket

DOCUMENTATION

The Feedlot Bucket features a dual cylinder clamp to allow for large capacities of odd shaped and difficult materials, including round bales, to be handled efficiently and accurately for loading and sorting.

  • Dual-cylinder single top clamp standard
  • Available with custom clamps for your specific application (pricing will vary)
  • Bolt-on reversible cutting edge ensures long life
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Critical wear areas utilize Brinell 400 wear plate
  • Drilled to accept dealer specified ground engaging tools
  • Optional third valve required on machine

WL-MTS
Mechanical Trip Swivel

Wheel Loader Mechanical Trip Swivel

  • Wheel Loader Mechanical Trip Swivel
  • Wheel Loader Mechanical Trip Swivel
  • Wheel Loader Mechanical Trip Swivel

DOCUMENTATION

Protect your wing assembly with this mechanical trip. Replacing the standard bell swivel on the front post, this unit uses a rubber spring that compresses to allow the moldboard to trip when it strikes an obstacle.

  • Adjustable rubber spring
  • Requires no hydraulics

WL-QA
Quik Pik Rear Post Bracket

The Quik Pik Rear Post Bracket allows the complete push pole assembly, wing, and plow to be disconnected from the loader by a single person without tools in just minutes.

  • Can be installed using existing push poles
  • No additional hydraulic valve sections or cylinders required
  • Package comes complete with all necessary items for installation including hydraulic quick disconnects
  • Does not affect the performance of the wing

WL-QKM
Quik Key Coupler

The Craig Quik Key coupler system allows for maximum work site and seasonal versatility. Change attachments in just seconds. Purchase our female blank to add to existing attachments or other heavy job site items that need to be moved frequently.

  • Single point self aligning pickup centers the coupler easily, even on uneven terrain
  • Large contact area spreads the load over a wide surface for strength
  • Works with all Craig Quik Key attachments built for machines within the same size category
  • Hardened steel wrist pin pressed into lock pin allows up to 10° of movement to improve alignment and connection strength as coupler parts wear
  • Pin assembly is available with grease fittings

WL-QKSB
Loader Crane Boom

Wheel Loader Crane Boom

  • Wheel Loader Crane Boom
  • Wheel Loader Crane Boom
  • Wheel Loader Crane Boom

DOCUMENTATION

Bucket lift hooks can be dangerous, they’re also inefficient. Reach further, more accurately and with better visibility by using the Craig Crane Boom. Available in 2-section or 3-section configurations, a crane boom increases the reach and material handling capabilities of any wheel loader.

  • Hydraulic extension available upon request
  • Available 3-section extension for increased reach
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations

WL-RBVHD
Heavy Duty Rock Bucket

Built to withstand harsh environments and severe service, Heavy Duty Rock Buckets are reinforced with extra thick plate and Brinell 400 wear protection on all wear surfaces. Straight, semi-spade and full spade edges available with your choice of teeth and segments. Features a plate style spill guard.

  • Available with custom hardfacing for your specific application (pricing will vary)
  • Can be configured with various arrow head cutting edges upon request
  • Critical wear areas utilize Brinell 400 wear plate
  • Drilled to accept dealer specified ground engaging tools

WL-RCS
Ramp Clearing Plow

Wheel Loader Ramp Clearing Plow

  • Wheel Loader Ramp Clearing Plow
  • Wheel Loader Ramp Clearing Plow
  • Wheel Loader Ramp Clearing Plow

DOCUMENTATION

Built specifically for airport installations, Craig Ramp Plows are keeping airport ramps clear and safe around North America. Custom engineered for ease of use and efficient snow handling, these extra-wide plows can be ordered with a variety of cutting edges – including rubber to protect the tarmac.

  • Replaceable, adjustable wear shoes and cutting edge for long wear life
  • Optional swing-out removable end gates
  • Can be ordered in a wide range of widths upon request
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations

WL-SDB
Side Dump Bucket

Working in tight quarters? The Craig Side Dump Bucket is for you. Designed to work safely with your specific machine, the Side Dump Bucket allows conventional loading and lateral unloading for material. Simply pull up beside the truck or trench and dump the bucket sideways hydraulically. Eliminates excess loader travel and lost time.

  • Boxed back frame offers superior strength and rigidity
  • Equipped with rugged 5" cushion head cylinder
  • Bolt-on reversible cutting edges
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Available in left hand dump (standard) or right hand dump (optional)
  • Mechanical side dump lock mechanism standard. Optional hydraulic lock mechanism available
  • Optional third valve required on machine
  • Critical wear areas utilize Brinell 400 wear plate
  • Drilled to accept dealer specified edge, installed

WL-SL
Saw Log Grapple

Wheel Loader Saw Log Grapple

  • Wheel Loader Saw Log Grapple
  • Wheel Loader Saw Log Grapple
  • Wheel Loader Saw Log Grapple

DOCUMENTATION

Designed and tested under severe working conditions in the heaviest logging mill applications. This grapple is a time-proven winner for the sorting and moving of tree-length or logs.

  • Boxed frame design for superior strength
  • Dual cylinders
  • Can be customized to your specific needs
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Optional third valve required on machine

WL-SNB
Snow Basket

Wheel Loader Snow Basket

  • Wheel Loader Snow Basket
  • Wheel Loader Snow Basket
  • Wheel Loader Snow Basket

DOCUMENTATION

Slotted design creates a large capacity, light weight bucket for efficient handling. The slots also allow air to escape when pushing into a large mound of snow – ensuring a full bucket. They help release snow when dumping, and allow water to escape when moving slushy or water-logged snow.

  • Double the capacity of your loader
  • Bolt-on, reversible cutting edge ensures long life
  • Available in Craig Quik Key, OEM coupler and Pin-on configurations
  • Superior operator visibility

WL-WINGGATE
Hydraulic Wing Gate

The lightning fast Hydraulic Wing Gate allows the operator to momentarily interrupt the windrow from the wing. Great for plowing near parking lot entryways and doorways or for keeping homeowner’s driveways clear when plowing residential streets. The quick action of this option allows the operator to maintain full operating speed when engaging the Hydraulic Wing Gate.

  • Standard cushion head double acting cylinder
  • Features rugged light weight boxed construction
  • Requires additional valve on machine
PROUDLY IN ASSOCIATION WITH
  • | |
  • © 2017 Craig Manufacturing Ltd.
  • All Rights Reserved.
