WL-CPG2
Loader Pipe Grapple
WL-CPG2
Loader Pipe Grapple
{{WL-CPG2}} IN-STOCK | Inventory List

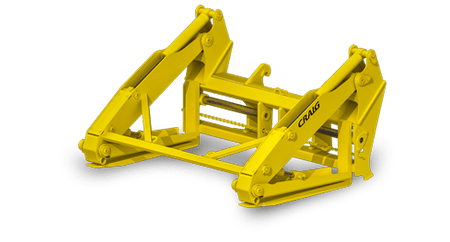

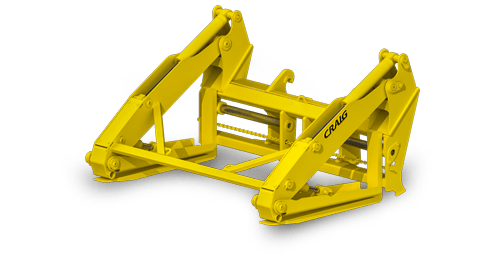

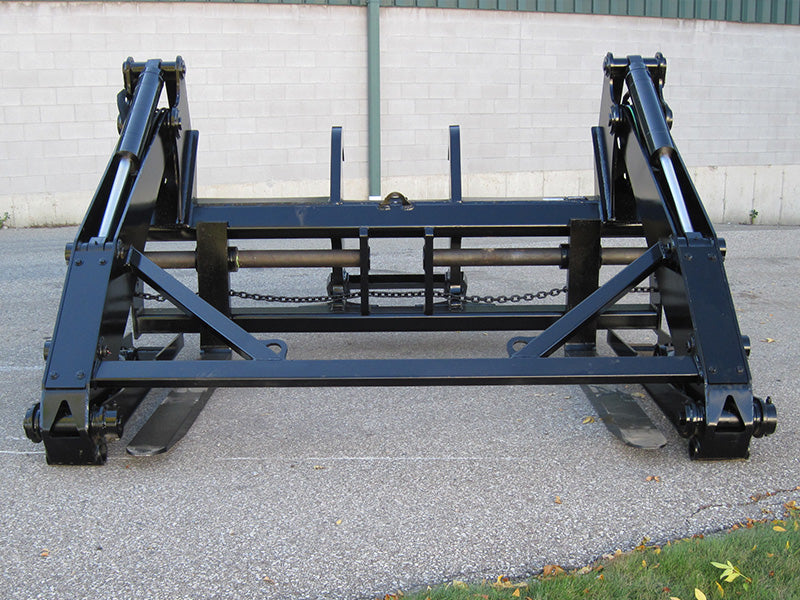

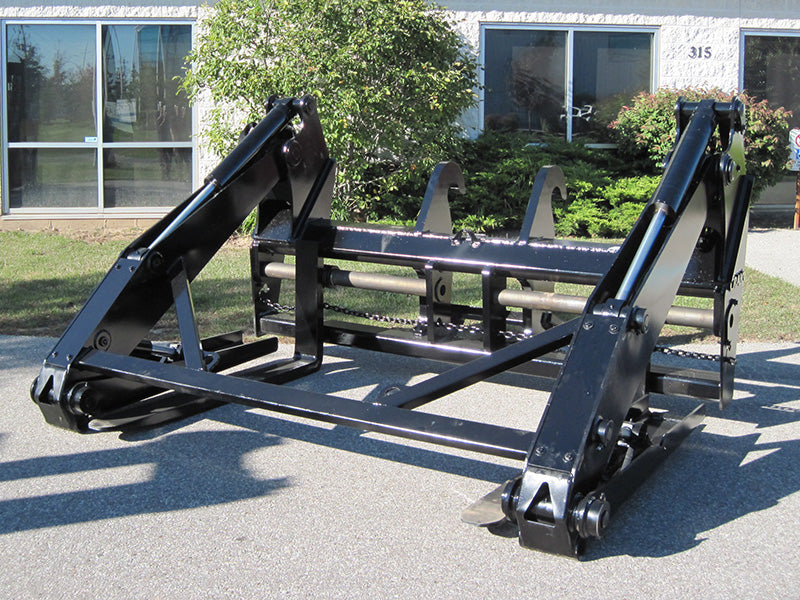

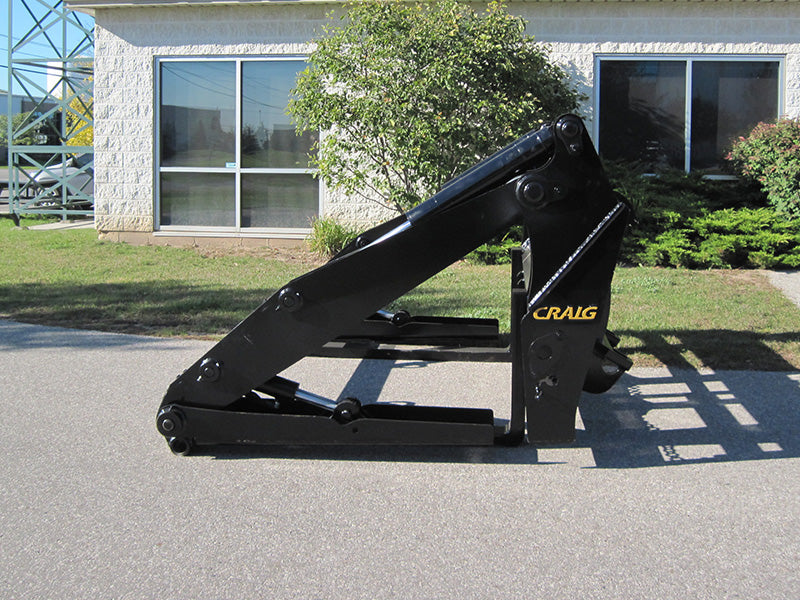

The Craig Pipe Grapple for wheel loaders is designed to work with all standard oil field pipe and features a low profile design that is the ultimate in high visibility.
- Low back frame
- Simple chain tine adjustment
- Hoses concealed in frame
- Central hose bank
- Greaseable pins and lugs
- 4" bore cylinders with 2" shaft
- 54" and 60" standard tine sizes
Available Fork Tines and Capacities
2.75 – 3.00 yd
- 2-1/2″ x 6″ x 54″ (19,000 lbs)
- 2-1/2″ x 6″ x 60″ (17,000 lbs)
3.00 – 3.50 yd
- 2-1/2″ x 6″ x 54″ (19,000 lbs)
- 2-1/2″ x 6″ x 60″ (17,000 lbs)
4.00 – 4.75 yd
- 2-1/2″ x 6″ x 60″ (17,000 lbs)
- 3″ x 6″ x 72″ (19,000 lbs)
5.00 – 5.50 yd
- 3″ x 8″ x 60″ (25,300 lbs)
- 3″ x 8″ x 72″ (30,400 lbs)
6.00 – 8.00 yd
- 3″ x 10″ x 72″ (27,000 lbs)
- 3″ x 10″ x 84″ (31,600 lbs)
- 3″ x 10″ x 96″ (23,700 lbs)
